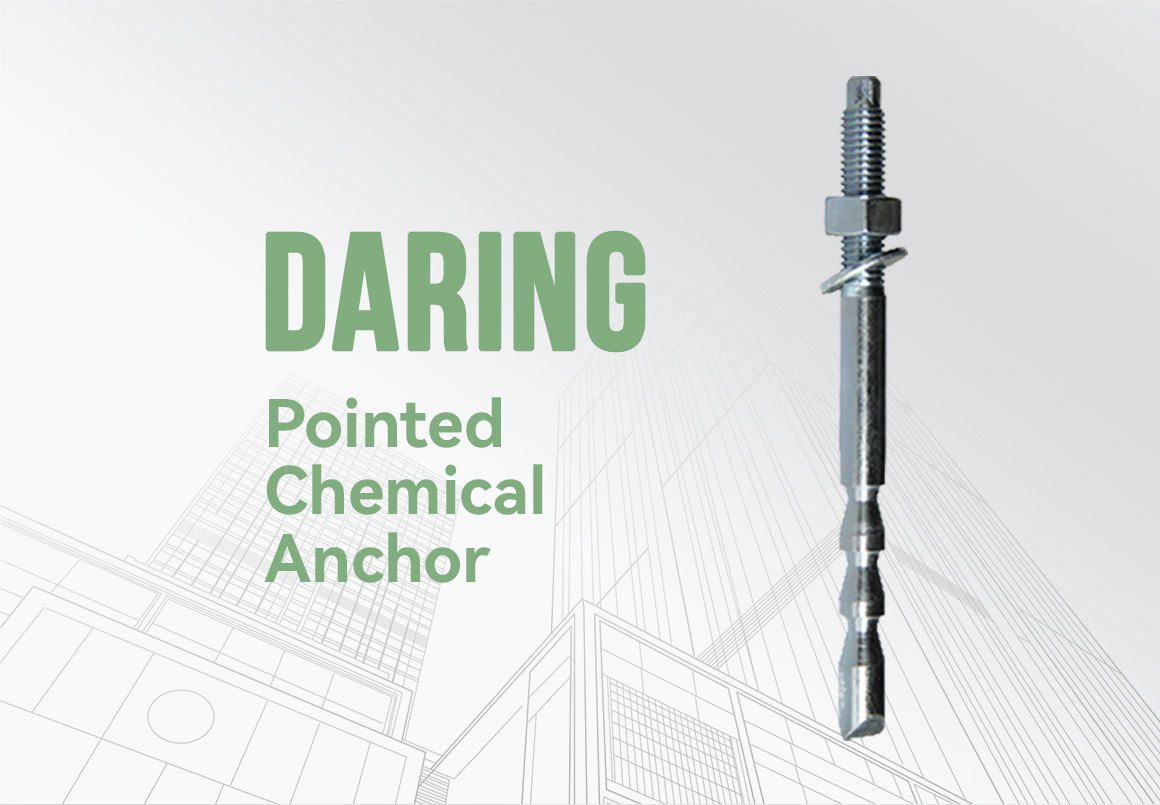

Pointed Chemical Anchor

OEM Factory, Customization based on your designs.
Materials include carbon steel and stainless steel for your choice. Surface treatments (except for stainless steel) include:
Cold galvanizing (average zinc layer thickness >5μm), suitable for ordinary environments.
Hot-dip galvanizing (average zinc layer thickness >45μm), suitable for corrosive environments.

Inquiry
Share

Facebook

Twitter

Google+

LinkedIn

Product Description

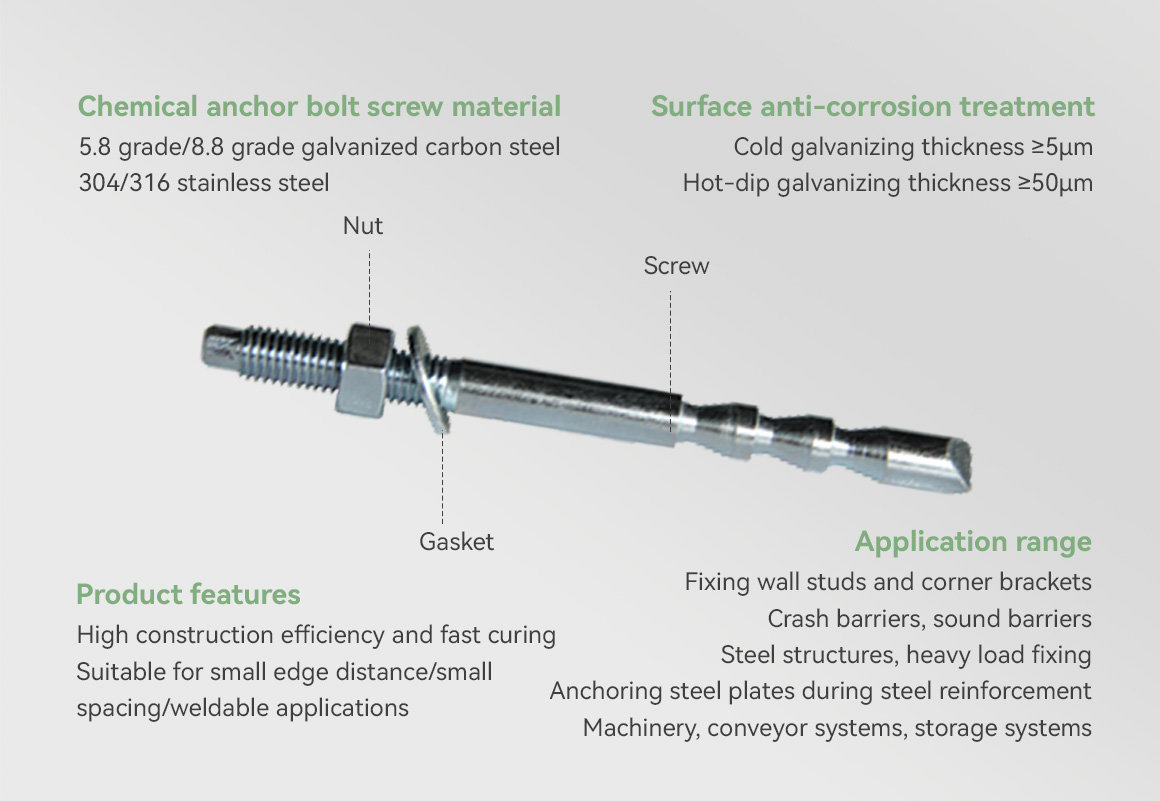

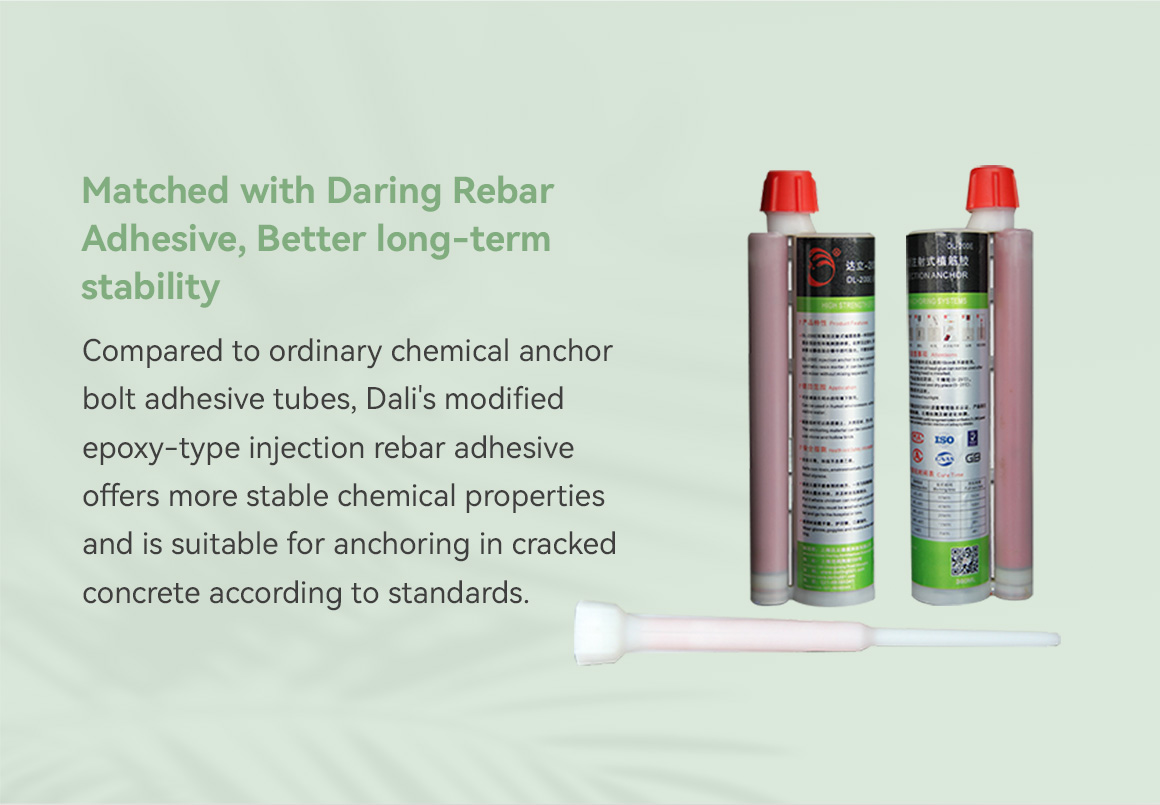

Shaped chemical anchor bolts can be used for anchoring concrete to exterior structural members, using injection type anchoring glue. After the anchoring glue is solidified, it can produce an anchoring effect similar to mechanical locking. The materials used for Daring shaped chemical anchor bolts are carbon steel with a grade of 5.8 or higher, or 304/316 stainless steel.

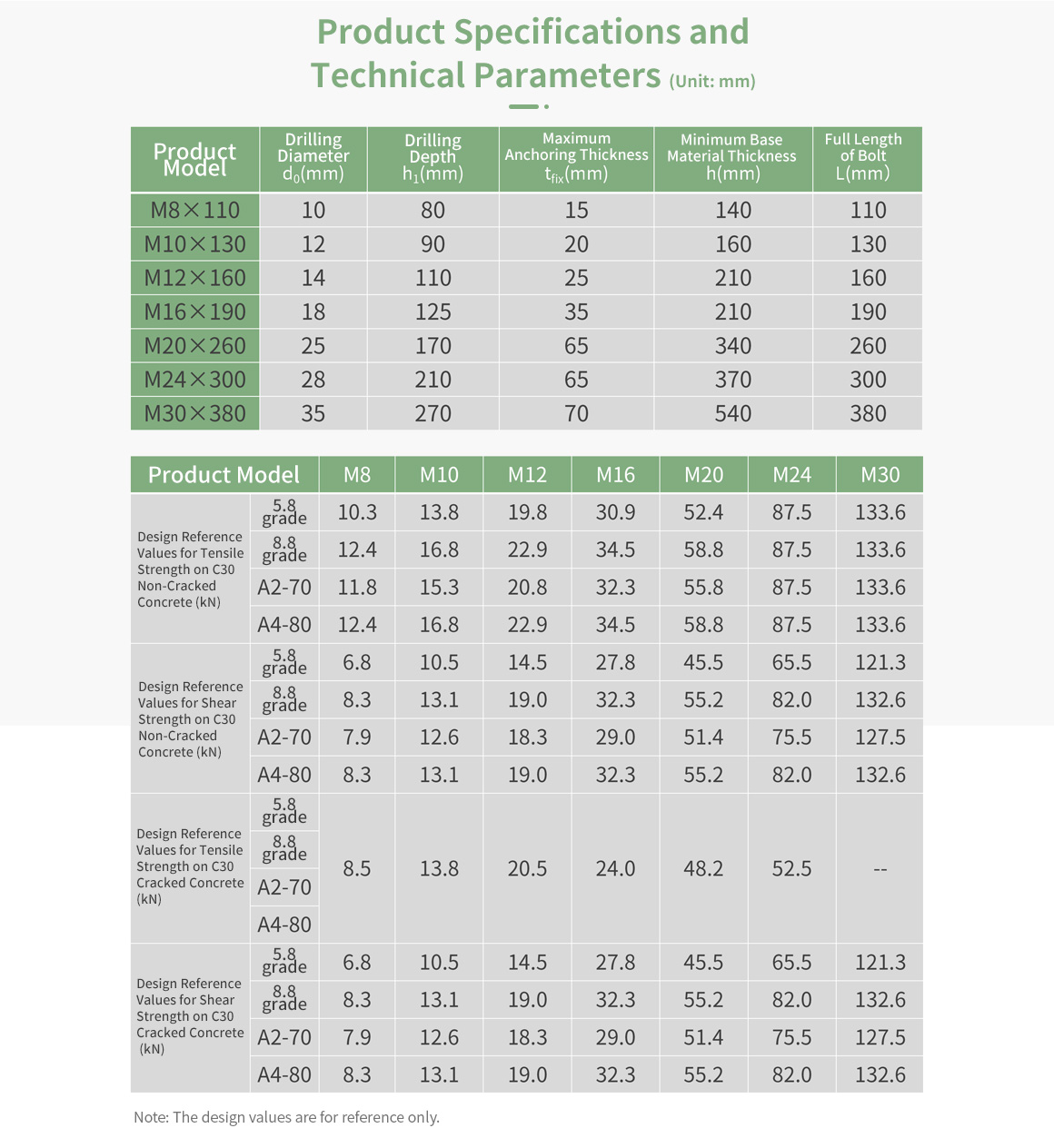

Specifications

Type	Drilling diameter(mm)	Drilling depth(mm)	Maximum fastener thickness(mm)	Min base material thickness(mm)	Length of anchor bolt(mm)
M8*110	10	80	15	140	110
M10*130	12	90	20	160	130
M12*160	14	110	25	210	160
M16*190	18	125	35	210	190
M20*260	25	170	65	340	260
M24*300	28	210	65	370	300
M30*380	35	270	70	540	380
